• Standard: 802.3 af/at compliant • PoE Ports: Ports 1–8, up to 30 W PoE output per port • Power Supply: 63 W
LED Göstergesi

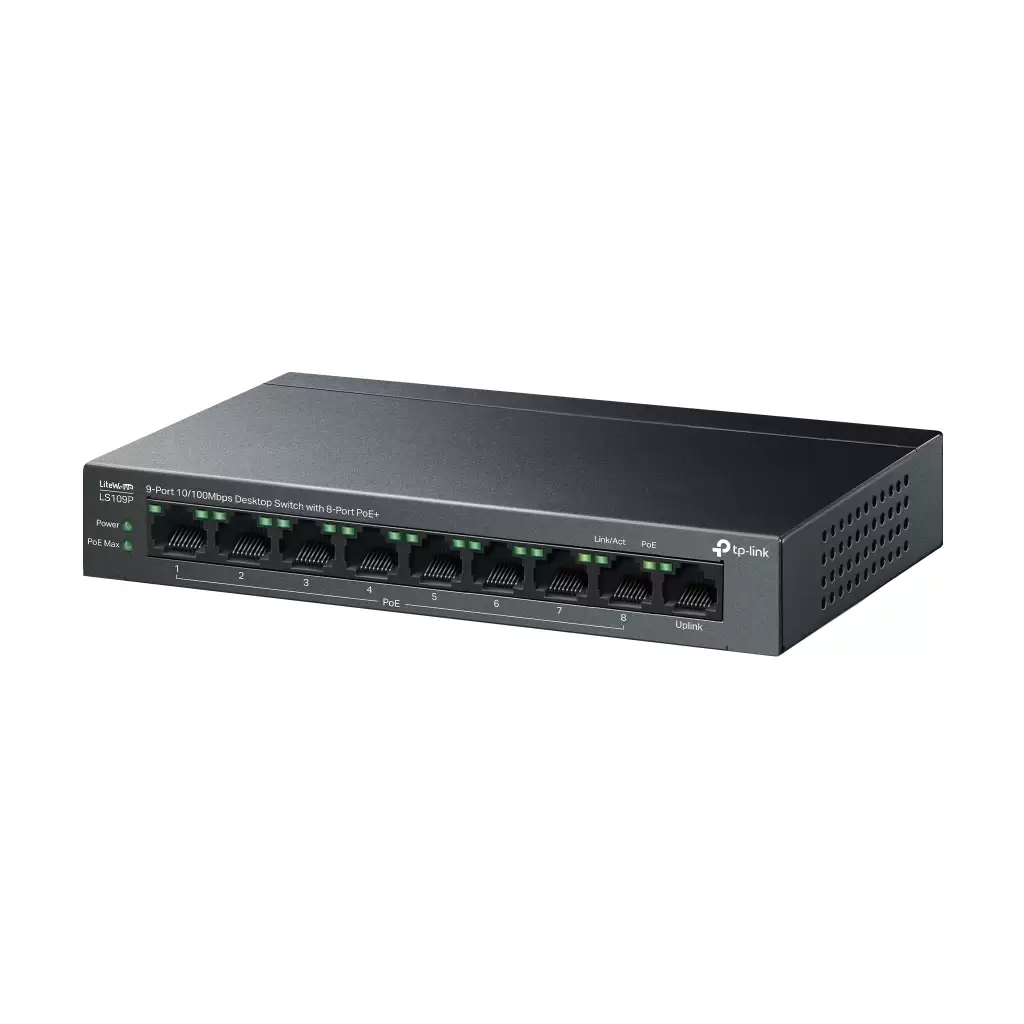

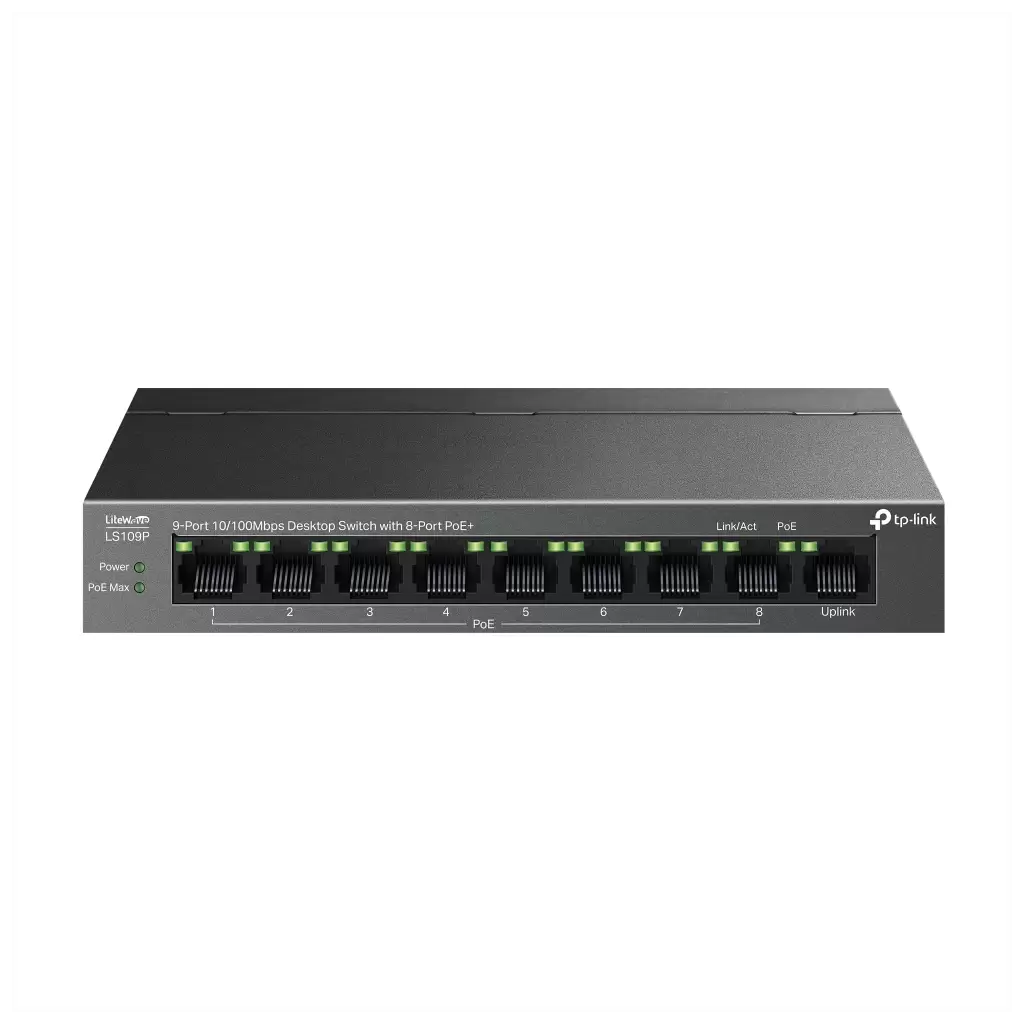

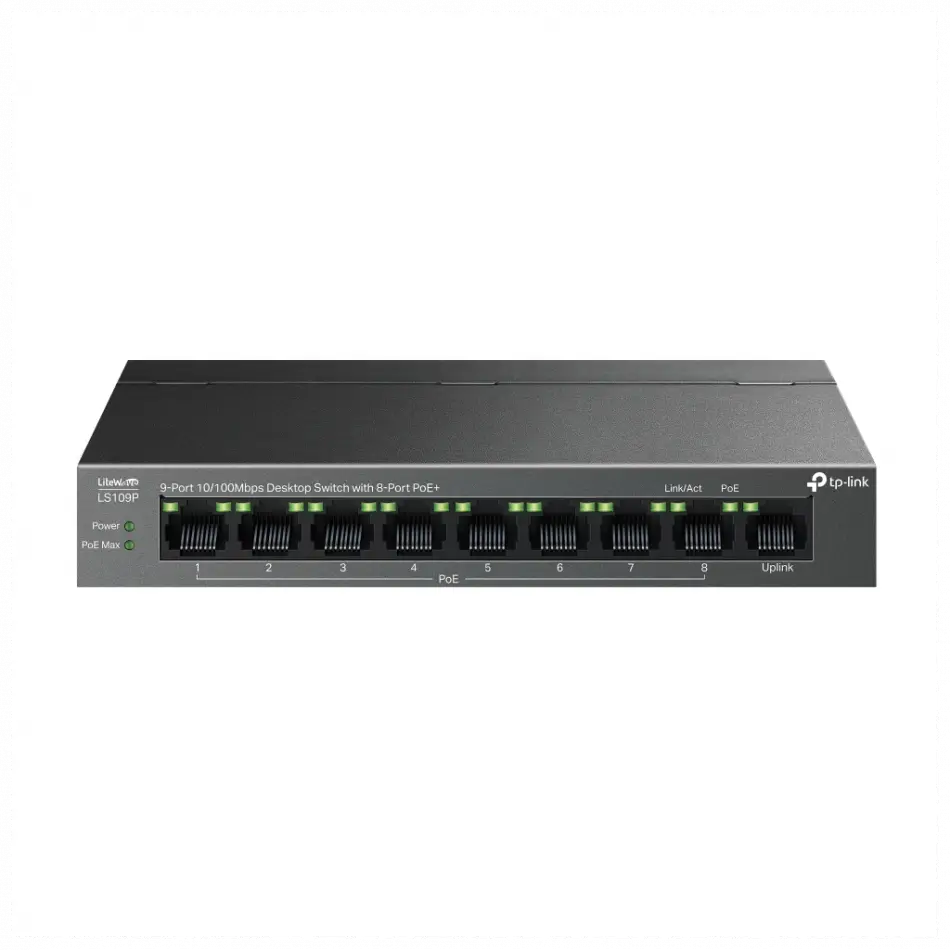

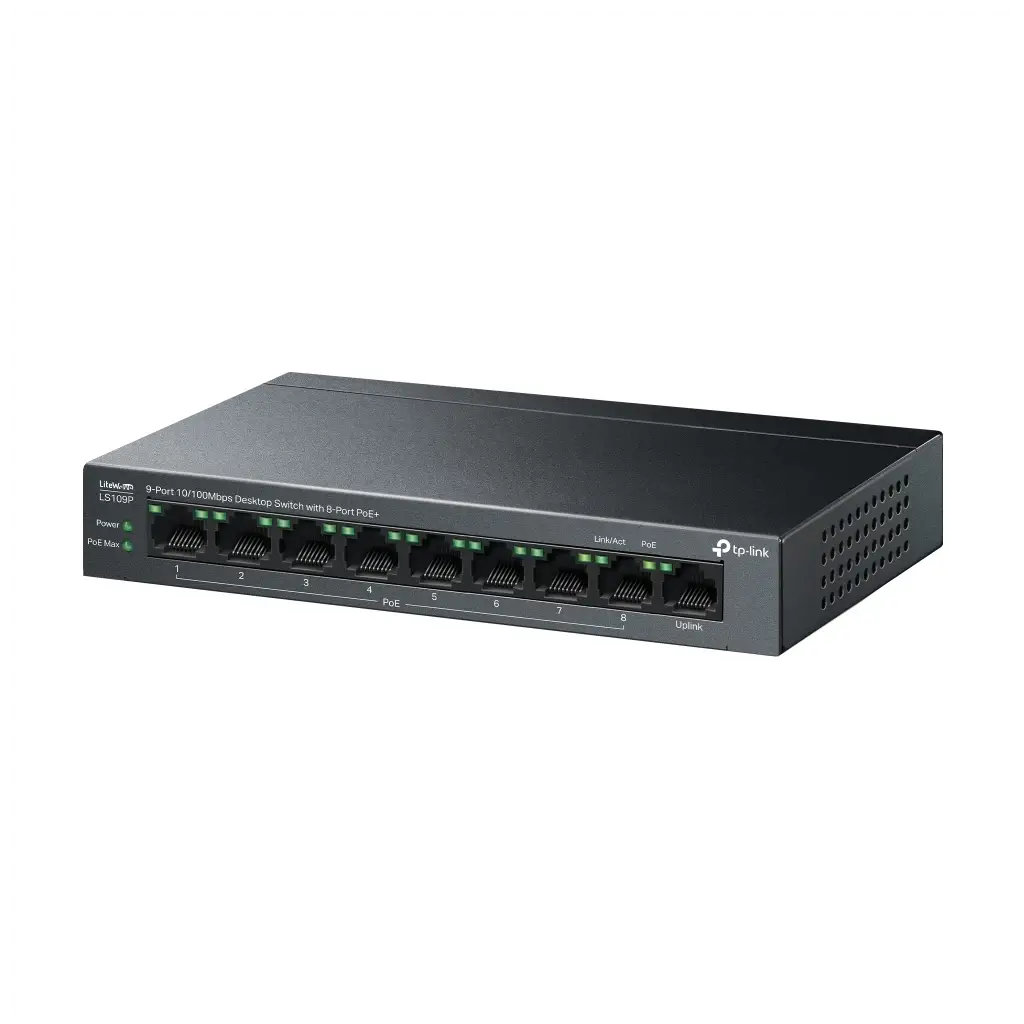

• Power • Link/Act • PoE Status • PoE MAX
Boyutlar ( W X D X H )
6.7×3.9×1.1 in (171×98×27 mm)
Maks. Güç Tüketimi
• 3.67 W (220 V/50 Hz no PD connected) • 73.24 W (220 V/50 Hz with 63 W PD connected)
Max Heat Dissipation
• 12.48 BTU/h (220 V/50 Hz no PD connected) • 249 BTU/h (220 V/50 Hz with 63 W PD connected)
PERFORMANS
Anahtarlama Kapasitesi
1.8 Gbps
Paket Yönlendirme Hızı
1.3392 Mpps
MAC Adres Tablosu
2K
Jumbo Frame
1.5 KB
YAZILIM ÖZELLİKLERİ
Gelişmiş Özellikler

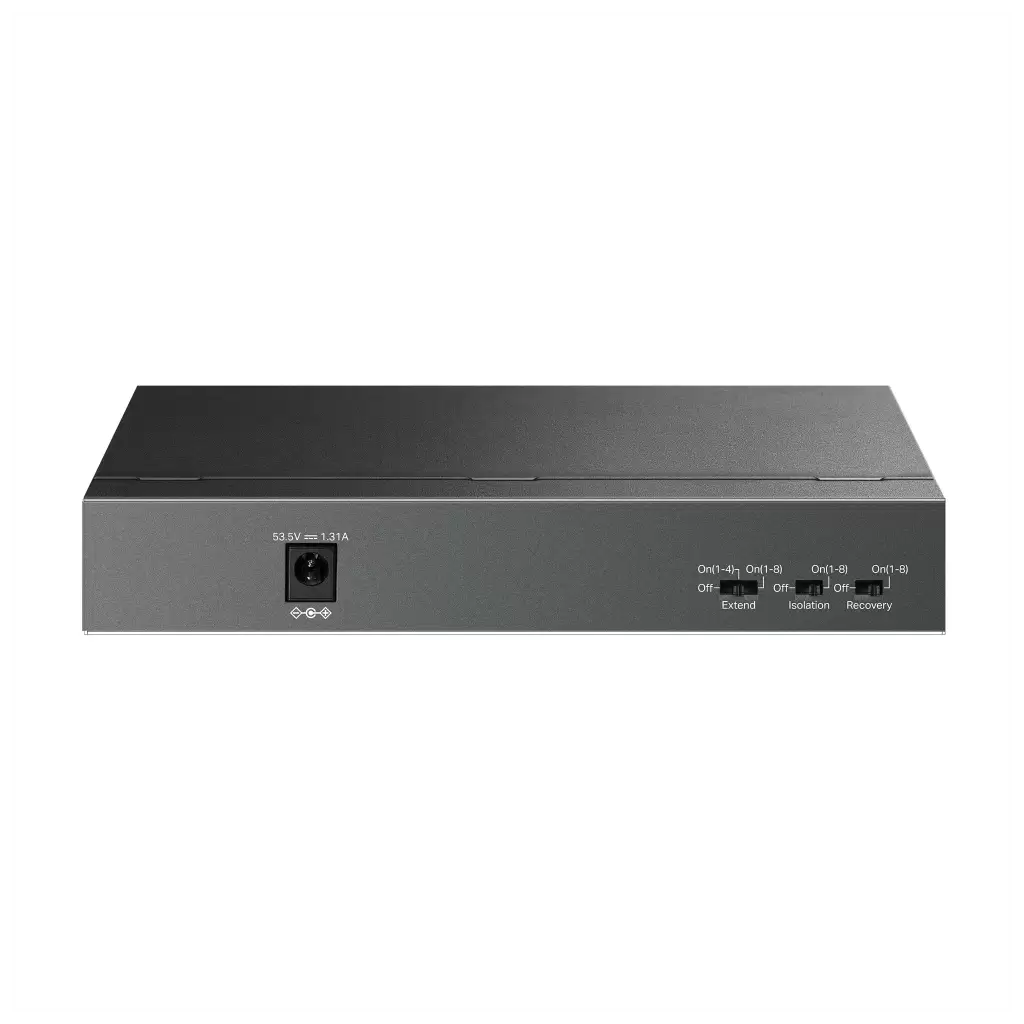

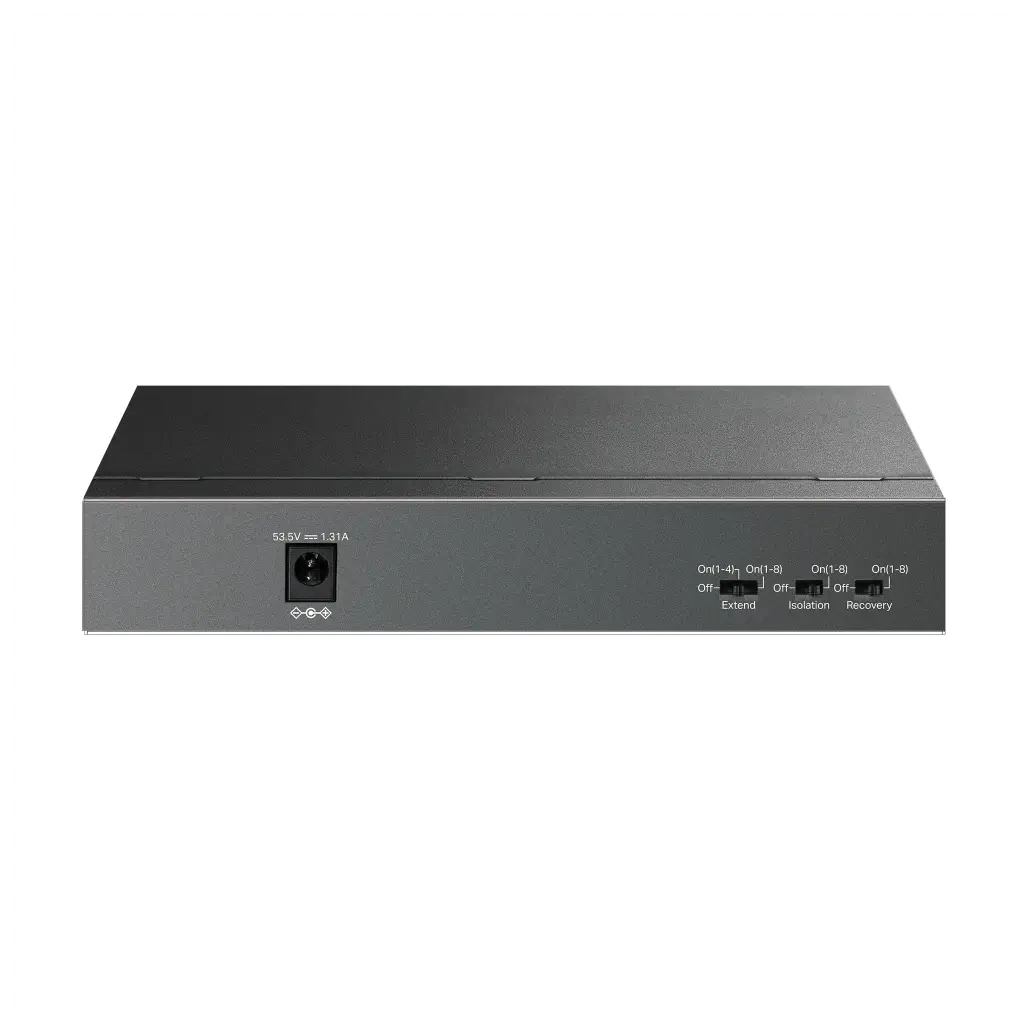

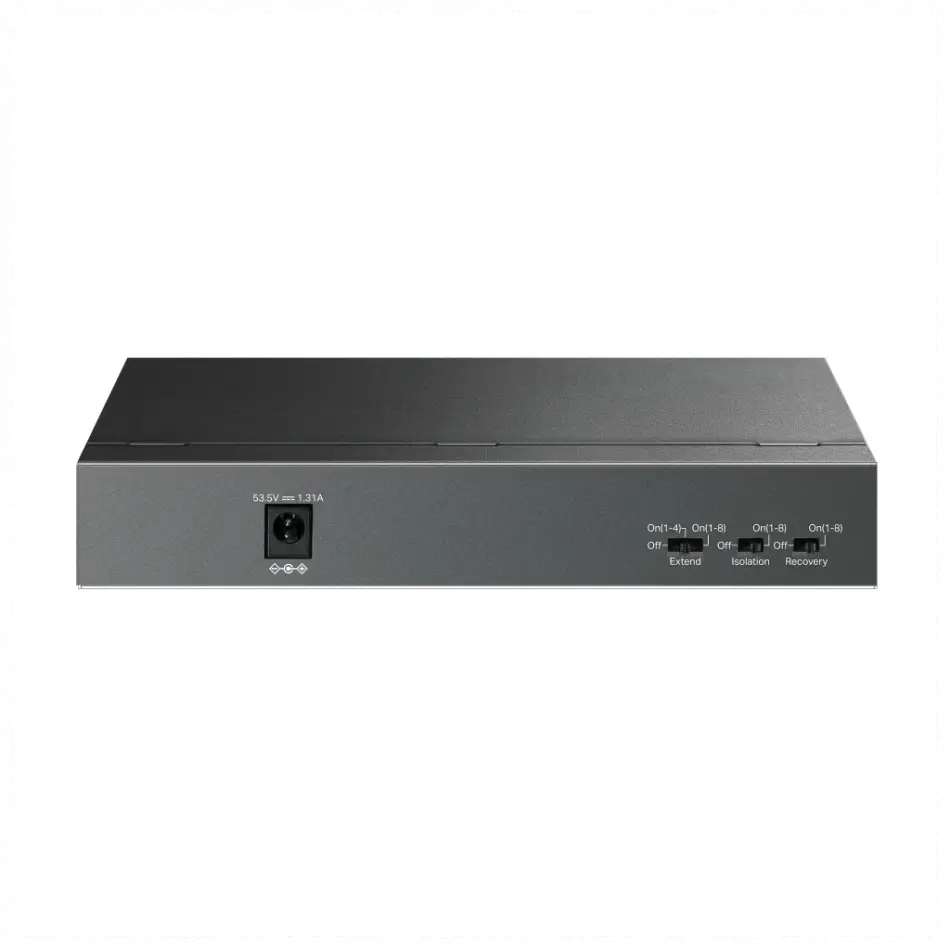

• Extend Mode Button (Ports 1–4/1–8, Up to 250 m PoE power supply and data transmission) • Isolation Mode Button (Ports 1–8) • PoE Auto Recovery Button (Ports 1–8) • Compatible With IEEE 802.3af/at Compliant PDs • Mac Address Auto-Learning and Auto-Aging • IEEE 802.3x Flow Control • Green Technology
