| DONANIM ZELLİKLERİ | |
|---|---|
| Standartlar ve Protokoller | IEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3af, IEEE802.3at |

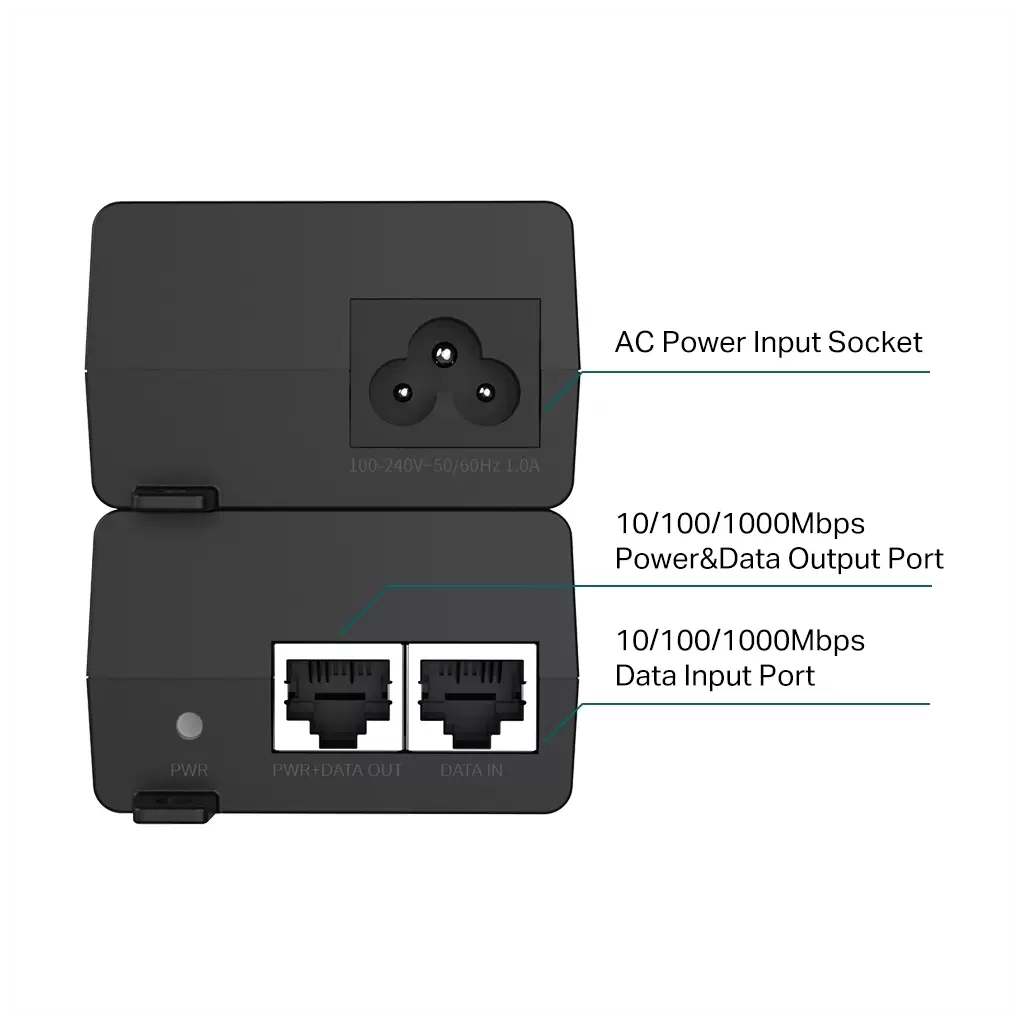

| Arabirim | • 1 10/100/1000Mbps RJ45 data-in port • 1 10/100/1000Mbps RJ45 power+data-out port • 1 AC socket |
| Ağ Medyası | • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100 m) EIA/TIA-568 100Ω STP (maximum 100 m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100 m) EIA/TIA-568 100Ω STP (maximum 100 m) • 1000BASE-T: UTP category 5, 5e, 6 cable(maximum 100 m) |
| G Tketimi | • Input: 100-240 V, 50/60 Hz • Output: Auto-determine the necessary power requirements (max. 30 W) |
| Temel Fonksiyon | • Auto-Sensing Algorithm enables providing power with 802.3af/at PD • Auto-determine the necessary power requirements • Wall-mounting and desktop installation supported • Plug-and-Play |
| LED | Power / PoE |
| Boyutlar ( W X D X H ) | 4.9×2.3×1.4 in (125×59.4×36.8 mm) |
| DİĞERLERİ | |
|---|---|
| Sertifika | FCC, CE, RoHS |
| Paket İeriği | • POE160S • Installation Guide • Power Cord • Wall Mounting Kits |
| Ortam | • Operating Temperature: 0°C to 40°C (32°F to 104°F) • Storage Temperature: -40°C to 70°C (-40°F to 158°F) • Operating Humidity: 10% to 90%RH non-condensing • Storage Humidity: 5% to 90%RH non-condensing |
| Kullanım Yeri | PoE Injector |
